Dixie Narco BevMax 2&3 Upgrade to BevMax 4 Kit

  • Image 1
12.00 LBS
Usually ships within 24 hours
Calculated at checkout
Minimum Purchase:
1 unit(s)

Product Description

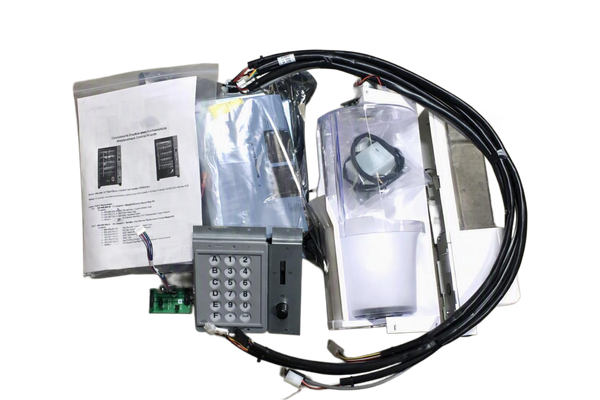

This kit will convert your older BevMax 2 or 3 soda machine to a BevMax 4 in all the mechanical and electrical ways that matter.  It includes the newer-style keypad/coin chute/coin return assembly, new control board, new delivery bucket and motor, Y motor board, Y motor harness, delivery cup assembly, and main door harness bundle.  You can also use this kit in an existing BevMax 4 that has seen a lot of use, and could use these parts replaced.  Installation takes about 1 hour for someone who is familiar with the process, 2-3 hours for a first-time install.  We have also created an installation video that is on YouTube, and linked to on this listing, that walks you through the installation process for this kit.

This kit will fix all of the odd ghost vending issues that plague the original 2s and 3s.

Product Videos

Vendors Tech Overview: Vending Machine Repair, Parts, & Equipment Sales (04:28)
Vendors Tech has been redefining quality in our industry since 2009. We offer a large variety of services for vending, carwash, gaming, and laundromat businesses across the United States. From bill acceptor and coin mech repair, to new and refurbished vending machines, to tech support, to parts, to even onsite repairs, we are fully equipped to be your one stop service and repair provider. Experience the difference in quality, and switch to Vendors Tech today! 970-623-1272 www.vendorstech.com
  • Vendors Tech O...
    Vendors Tech has been redefining quality in our industry since...
  • Upgrading a Di...
    Step by step guide on how to install the upgrade kit offered b...

Warranty Information

1 year parts and labor warranty.

Other Details

Compatible with:
BevMax 2/3/4 models (DN3800 & DN-5800)
BevMax 4 latest versions of the main control board, door bundle harness,, delivery bucket assembly with drop sensor, Y motor board, Y motor board harness, delivery/picker cup assembly, new style keypad assembly, all necessary mounting hardware.

Find Similar Products by Tag

Write your own product review

Product Reviews

  1. BevMax Upgrade 5 Star Review

    Posted by on 24th Mar 2020

    This is my 3rd kit. I upgrades 1 Bevmax 3 and one Bevmax 4. The easiest one to upgrade is the Bevmax 4. Just install the parts turn it on, and tell the controller which modle you have. After that program the prices. My latest purchase was to upgrade a future Bevmax. Excellent kit.

  2. Bevmax Upgrade 5 Star Review

    Posted by on 11th May 2019

    This is my second upgrade kit. The first one upgraded a BevMax 3 and worked perfectly. This second one is for a worn Bevmax 4. Excellent upgrade.

  3. BevMax 3 to BevMax 4 Conversion Kit 5 Star Review

    Posted by on 5th Dec 2018

    Worked out very well on my Bevmax 3. Hardware installation was very simple. Had to play with the "Shelf Location" a bit, because the picker was not lining up ! The control board defaults to shelf location "D!", I had to change it to "D", and offset the "Y" axis. Other than that, it is up and running.

    ***(NOTE FROM VENDORS TECH: The guide for proper shelf locations and offsets is included with the control board package in the kit. We also offer detailed instructions on how to adjust those settings based on the serial number of your machine in our online video walking you through how to install this kit. https://www.youtube.com/watch?v=FrjmY1i43Q8. If there are offset or shelf location setting questions after installation, customers are welcome to call us at 970-623-1272. Thanks for your review, Mike!)***

  4. The good and the bad 5 Star Review

    Posted by on 3rd Feb 2017

    I usually don't do reviews but thought I would in this case as I think the product was excellent but I also have a few suggestions. First let me say the the product was well packaged however that being said the plastic standoffs used to mount the main controller to the metal back plate did not survive the trip. All 5 were broken in transit. Two of the standoffs on the old board were also broken leaving me short. After checking with many local computer and electronic stores I was finally able to find a suitable substitute. My suggestion is that the main board assembly be boxed separately inside to main box to prevent this from occurring.

    ***(NOTE FROM VENDORS TECH: Sometimes those standoffs come broken from the manufacturer, and we can't see them in the sealed bag. However, we have made necessary changes to prevent this happening in the future, and notified the customer that new standoffs can be provided by us free of charge if they come broken.)***

    Secondly, I found the keypad and cover (bezel) assembly difficult to mount. My machine used a flat keypad bracket which did not mount well behind the new bezel because of the bezel's thickness. I ordered a new bracket (part #CR0001800) which made the install a snap. The new bracket also allows for the use of the keypad cover without breaking the tabs or filing the alignment stub.. I ordered a new cover/bezel (part #80182462) as well. The bracket is not very expensive and i suggest that it also be included in the upgrade kit.

    ***(NOTE FROM VENDORS TECH: This suggestion actually coincided with a planned update we made to these kits, which are now shipped with a complete keypad and money insertion assembly that is much easier to install, and no longer requires modification of any parts.)***

    Aside from those issues installation was easy and the machine operates perfectly. Thanks to Vendors Tech for selling such a kit.

  5. Fixed My Problems! 5 Star Review

    Posted by on 24th Aug 2016

    I´m from Spain and thanks to Alden and Vendors Tech, my broken DN5800 Bevmax 2 is now a new Bevmax4. More efficient, fast, accurate. Really a worth purchase is this kit.
    Here, in Europe it´s very difficult to obtain spare parts for Crane, so I´was lucky to find this store.

    My machine before: https://www.youtube.com/watch?v=l03mcHyoCqM

    My machine after: https://www.youtube.com/watch?v=HsKuft1whO0
