Crane BevMax Refresh Media2 DN-5800-6HC Beverage Vending Machine

Crane Payment Innovations (CPI)

(No reviews yet) Write a Review
$12,972.00
SKU:
VT1839
UPC:
DN-5800-6HC
Condition:
New
Availability:
Usually ships within 8 weeks
Weight:
680.00 LBS
Shipping:
$650.00 (Fixed Shipping Cost)
Energy compliance:
Exceeds 2012 Energry Star Tier 3 energy standards
ADA and ANSI compliance:
Yes
Selections:
45
Shim requirements:
Virtually none. With few exceptions, all sizes and shapes of bottles and cans will vend out of this machine with no shims.
Types of products vended:
Will vend anything from a Red Bull 8.4oz can to a 24oz soda bottle
Vend speed:
8 seconds
Interface for changer and validator:
MDB
Product delivery method:
Robotic arm
Actual model number:
713D (DN-5800-6HC)
Bill validator included:
CPI Talos T7R2-U5MUS $1-$20 bill validator
Coin changer included:
CPI Gryphon G3C3-MN00NB-USD-AAC 6-tube coin changer with NDQQQ$ tube configuration
Credit Card Reader:
Nayax VPOS Touch cashless system, or Crane integrated cashless system (both require an account directly with Nayax or Crane Connectivity)
Shipping Weight:
715 Ibs
Dimensions:
72" High x 47" Wide x 32" Deep
Keypad/display type:
9" touchscreen
Refrigerant type:
R-290
Adding to cart… The item has been added

Product Overview

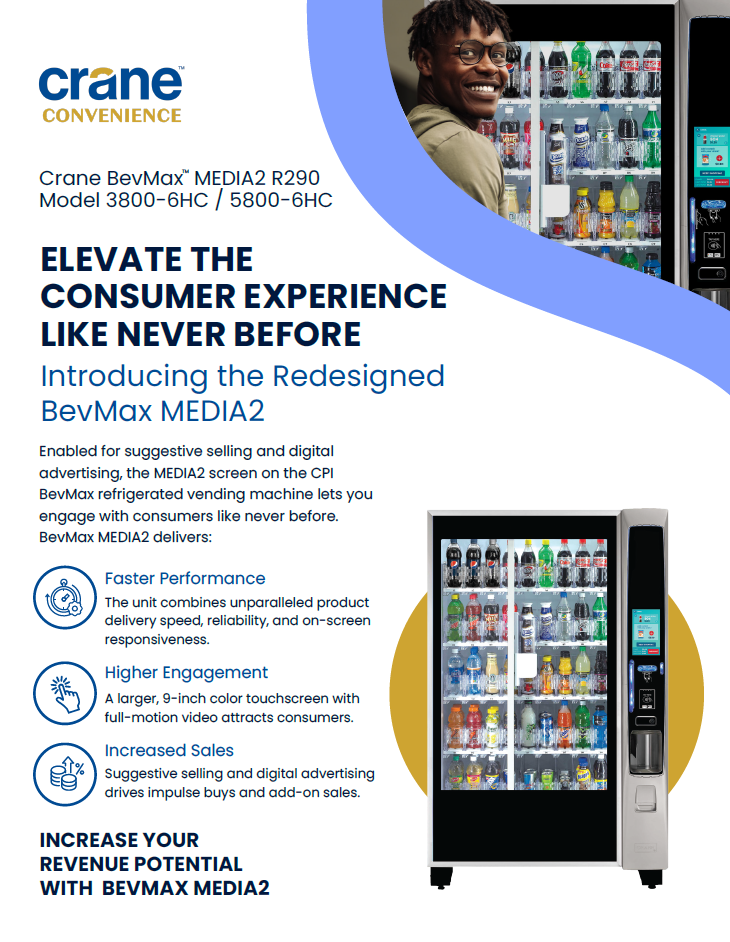

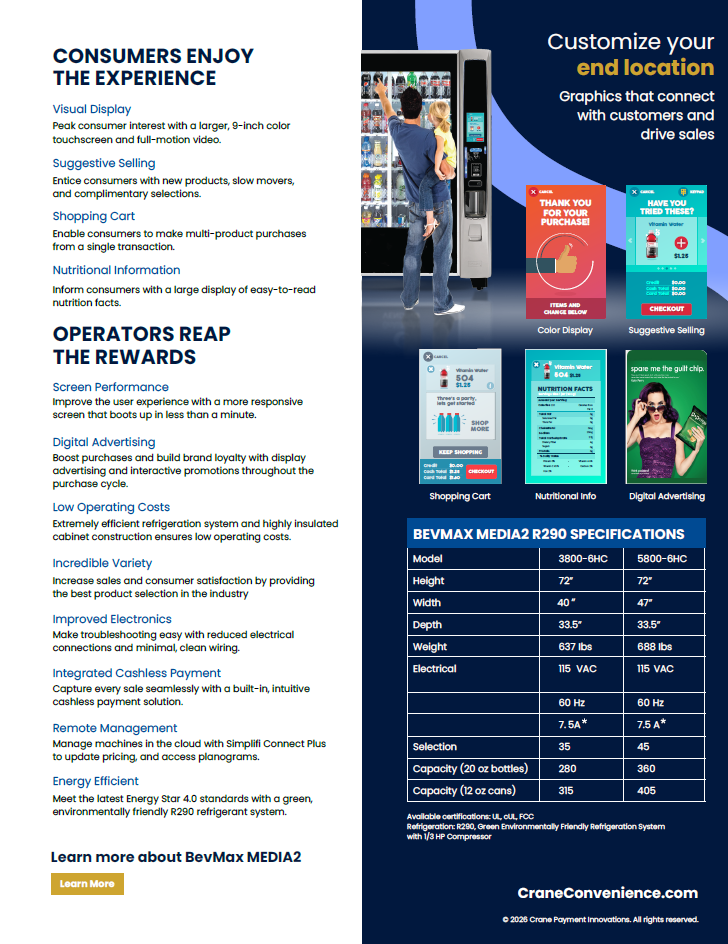

Debuted in the spring of 2013, Crane's Merchant Media series of vending machines are the present and the future wrapped into one package.  It incorporates wireless tracking and telemetry, touchscreen controls, and integrated credit card and media driven purchase, with legendary reliability and proven cabinet and vend design that has made Crane vending machines one of the most popular brands among professional operators.  The BevMax Media series from Crane feature first-in-the-industry precision elevator product delivery, 45 selections, and 8 second vend time experience, and a complete ADA compliant touchscreen interface, giving them an unprecedented level of capacity, attraction, and vend reliability.

In the late 2010s, the Crane Media platform was upgraded to Media2, which includes much faster processing speeds, and a 9" touchscreen customer interface.

The Crane BevMax Refresh 6 (DN-5800-6HC) is one of the most advanced glass front beverage vending machines available.  Features include:



  • Raised cup allows for gentle handling of product which minimizes foaming.
  • Environmentally-friendly R-290 refrigeration system.
  • Multiple shaped packages can be vended without adjusting the setup.
  • Dual gate design prevents product from falling if machine is rocked.
  • Beverage trays allow for full 20oz./ 600ml capacity on all trays (280 bottles).
  • Cabinet design allows for pallet jack use during installation.
  • Door opens 180 degrees flush to allow it to be placed in a bank or next to a wall.
  • Large glass door provides better product display.



This machine includes a new bill acceptor (CPI Talos $1-$20) and a new coin changer (CPI Gryphon NDQQQ$).  Different validator and changer brands and models are available upon request.

Dimensions:

72" High x 40" Wide x 32" Deep.

Shipping:

Please note: if the actual cost of shipping is significantly less or greater than the flat rate advertised on this listing, we will contact you after your order to credit or charge you for the difference.  The flat rate displayed represents an average shipping cost to most location, service, and distance combinations nationwide.  For purchases of 3+ machines, please call us directly at 970-623-1272 for discounted shipping rates.  ALL SHIPMENTS ARE FULLY INSURED AGAINST LOSS OR DAMAGE IN-TRANSIT AT NO ADDITIONAL COST TO YOU!

Listing image is for reference only, and may not reflect the exact appearance of the machine you receive.



Warranty Information

2-year parts only warranty.
