Product Overview

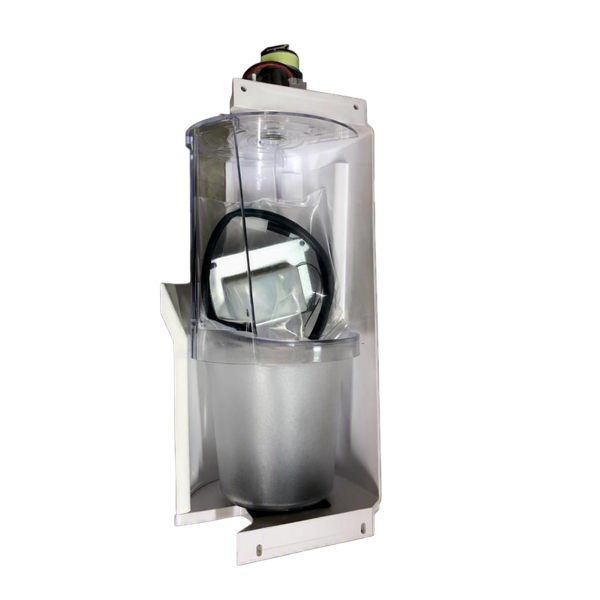

This port assembly, which includes the drop sensor assembly, will fit non-Refresh BevMax 2/3/4/6 glass front soda machines made before 2021, and that includes the Media BevMax (the model 6). If you have a 2, or even some early 3 models, you need to check and make sure that you currently have a port that has a circuit board on top under the port motor. If you have a motor and some wires, but no circuit board, you'll need a different door bundle harness to be able to connect these current model ports to your control board. Dixie no longer makes the older ports without the circuit boards on them. If you need the bundle harness, call us at 970-623-1272 before you order.
***NOTE: This part will NOT WORK in Crane BevMax Refresh models, even though it looks the same. The BevMax Refresh port has a magnetic cam and completely different top circuit board, and the part number for that port is VT3713.***
